Code Snips Diffable Datasource with UITableView

// Written by Jordan Morgan // Jan 1st, 2021 // Read it in about 2 minutes

let concatenatedThoughts = """

Welcome to Snips! Here, you'll find a short, fully code complete sample with two parts. The first is the entire code sample which you can copy and paste right into Xcode. The second is a step by step explanation. Enjoy!

"""

The Scenario

Standing up diffable datasource with UITableView.

import UIKit

// 1
struct VideoGame: Hashable {
    let id = UUID()
    let name: String
}

extension VideoGame {
    static var data = [VideoGame(name: "Mass Effect"),
                       VideoGame(name: "Mass Effect 2"),
                       VideoGame(name: "Mass Effect 3"),
                       VideoGame(name: "ME: Andromeda"),
                       VideoGame(name: "ME: Remaster")]
}

// 2
typealias TableDataSource = UITableViewDiffableDataSource<Int, VideoGame>

class ViewController: UIViewController {

    let videogames: [VideoGame] = VideoGame.data
    let tableView = UITableView(frame: .zero, style: .insetGrouped)

    // 3
    lazy var datasource: TableDataSource = {
        let datasource = TableDataSource(tableView: tableView, cellProvider: { (tableView, indexPath, model) -> UITableViewCell? in
            let cell = tableView.dequeueReusableCell(withIdentifier: "cell", for: indexPath)
            cell.textLabel?.text = model.name
            return cell
        })

        return datasource
    }()

    override func viewDidLoad() {
        super.viewDidLoad()

        tableView.register(UITableViewCell.classForCoder(), forCellReuseIdentifier: "cell")
        view.addSubview(tableView)
        tableView.frame = view.bounds
        tableView.autoresizingMask = [.flexibleWidth, .flexibleHeight]

        // 4
        var snapshot = datasource.snapshot()
        snapshot.appendSections([0])
        snapshot.appendItems(videogames, toSection: 0)
        datasource.apply(snapshot)
    }
}

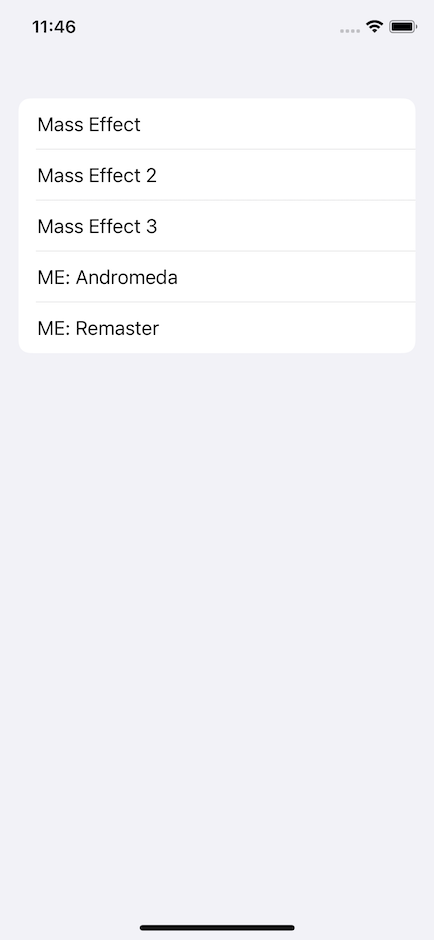

Which results in the populated table view:

Table view demo

The Breakdown

Step 1
Diffable datasource requires its underlying model to conform to hashable, so we’ve got a simple model satisfying that requirement here:

// 1
struct VideoGame: Hashable {
    let id = UUID()
    let name: String
}

extension VideoGame {
    static var data = [VideoGame(name: "Mass Effect"), VideoGame(name: "Mass Effect 2"), VideoGame(name: "Mass Effect 3"), VideoGame(name: "ME: Andromeda"), VideoGame(name: "ME: Remaster"),]
}

Step 2
Diffable datasource can look a bit daunting at initialization, so I find it much easier to read by leveraging a typealias for each one you use. While certainly not a requirement, I do think it’s worthwhile here:

// 2
typealias TableDataSource = UITableViewDiffableDataSource<Int, VideoGame>

Note that if you have multiple sections, the first argument (an Int here) will represent the different sections of the table view. In cases where you just have one, or the sections have no real meaning in correlation with your data, it’s perfectly fine to just a simple Integer type.

Step 3
There are many different approaches to how developers tend to initialize a diffable datasource instance. Personally, my only main concern is avoiding an implicitlly unwrapped optional for a variety of reasons. Regardless, you’ve got two main responsibilities here:

  1. Pass in the table view instance
  2. Handle what is essentially cellForRow within the CellProvider closure: Provide a hydrated UITableViewCell by using the index path and model passed in.
// 3
lazy var datasource: TableDataSource = {
  let datasource = TableDataSource(tableView: tableView, cellProvider: { (tableView, indexPath, model) -> UITableViewCell? in
      let cell = tableView.dequeueReusableCell(withIdentifier: "cell", for: indexPath)
      cell.textLabel?.text = model.name
      return cell
  })

  return datasource
}()

Step 4
Diffable datasource works with a snapshot concept. This is where its ease of use and powerful diffing comes from. Here, you only need to think about how the data should be modeled right now, in this instant. In this case, we’ve got what’s essentially the first load of the data, so we’ll pass everything in and apply it:

// 4
var snapshot = datasource.snapshot()
snapshot.appendSections([0])
snapshot.appendItems(videogames, toSection: 0)
datasource.apply(snapshot)

Until next time ✌️
